... proximity, float position sensing for liquid level,industrialcontrols, office equipment, home appliance, and telecom applications. Features: Low close/open hysteresis (close differential) Normally openswitch...
The MITI-7 ultra-miniaturereed switchis a normally openswitchwith a 7mm x 1.8mm (0.276” x 0.071”) glass envelope, which canswitch170Vdc at 10W. It has a sensitivity range of 6-20 ...
The MISM-7 surface mountreed switchis a sub-miniature, normally openswitchwith a 7mm long x 1.8mm diameter (0.276” x 0.071”) glass envelope, capable of switching up to 0.25 Amps. Thisreed...
Miniaturereed switchwith glass length of 10.5 mm and diameter of 2.1 mm. Rated power 20 W, Switching voltage 200 V DC, Switching current 1 Amp DC. UL approval, flat leads. ➢Features: Paddle-Oriented MiniatureReed...
StandexMeder Electronics GmbH
Reed SwitchORD229 is a high powerreedswitchwith glass length of 21.0 mm and diameter of 2.7 5mm. Rated power 50 W, Switching voltage 350 V DC, Switching current 0.7 Amp DC. Applications Automotive, ...
StandexMeder Electronics GmbH
The KSK-1C90F is a miniature (Form C) changeoverreed switchor single pole double throw (SPDT)reedswitch. Glass length of 14.0mm and diameter of 2.54mm. Rated power 10 W, Switching ...
StandexMeder Electronics GmbH
The Bestactreedelement is a highly reliable, broad control rangereedswitchthat when used and implemented in various application products provides a user or manufacturing operation ...
The AC01, which is manufactured by Celduc Relais, is a normally open, dry contactreed switchwhich has an utmost switching power of up to 1 volt-ampere with an utmost switching voltage of up to 30 V DC. It also has an ...
The Bestactreedelement represents an extremely reliable, broad control rangereedswitchspecially designed to serve the users or manufacturing operation with excellent up-time and ...
The RI-80 model engineered by Comus, is a subminiaturereed switchthat features an A contact form. This device provides users a diameter that measures 0.07 in. and a glass length of 0.19 in. In addition, it operates ...
The Comus Group
Power switching at low cost; contact ratings up to 250W and 5A Perfectly suitedfor industrial applications形成和形式CVarious sensitivity ranges available
Reed switchIP67 Design:Reedswitchwith plastic housing. Function: PNP. See specification for length of connection cable, the connector (M8) is preassembled ready for connection ...
PCB plasticreedswitch,which make thereedswitchstrength to prevent rupture.It can be installed directly on the circuit board, stable performance. Seal design,work ...
Theswitchcontact is intended for use with mechanical flow meters and serves to electrically monitor flow limits. Applications Monitoring of flow limits
Operating principle –Reedcontact Application – Theswitchcontact is for use on mechanical flow meters for the electronic monitoring of flow limits.SwitchContact SG-30 OVERVIEW Features – ...

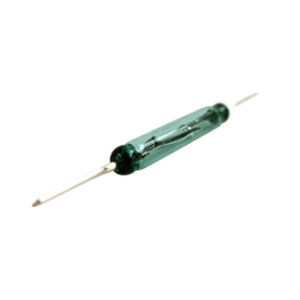

Reed switches are small electrical switches that are activated by an applied magnetic field. Configurations include normally open or normally closed.
ApplicationsReed switches are used in the automobiles as position sensors, parking sensors and movement sensors. A common application of a reed switch is to detect the opening of a door. In marine applications, reed switches are used to detect liquid levels or anchor position.
TechnologiesReed switches are created by hermetically sealing two ferromagnetic contacts in a glass tube. The contacts have a gap between them which can be altered when a magnet is present. A reed switch can come as either normally open (NO) or normally closed (NC). A reed switch can be used to make a reed relay by surrounding it with a coil.
How to chooseWhen selecting a reed switch, be sure to provide information such as the rated power (W), the switching voltage (V) and the switching current (A) of your application.
- Compact
- Inexpensive
- Availability
- Sensitive to high voltage
- Sensitive to high current
- Fragile
