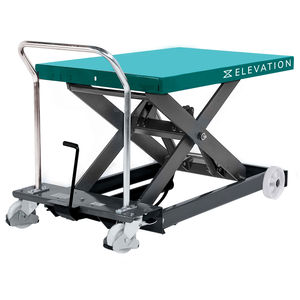

Double-scissor升降台

液压 手册 移动

我们经济移动剪刀把表表功能简单的没有任何额外的定制功能。我们有五个标准模型供你选择:200公斤,300公斤、350公斤、500公斤和800公斤。•安全关键功能、重量轻、易于使用和高度机动的。•高质量的健壮的建设。•一系列最大提升高度从750毫米到1610毫米。•手动操作。•单引号或双电梯可用。•重型的手臂,轴承和液压。•所有轮子都装有密封轴承和聚氨酯轮胎。•一个castor装有总停止制动作为标准。 • All models fitted with an overload valve and slow lowering valve to control lowering speed. • Non marking tyres ensures no damage to floors. • Durable, powder coated frame. • Lowering speed controlled by an overload valve and slow lowering valve. Safety Features • Total stop brakes prevent the table from moving when loading and unloading. • Twin braked castors. • Toe guard. • Each table is issued with operating instructions and a test certificate in conformance with EU Standards EN 1570 and BS:5323:1980. Specifications • 200kg model = 700mm L x 485mm W platform. Lift Height: 255mm – 745mm. • 300kg model = 852mm L x 520mm W platform. Lift Height: 305mm – 850mm. • 350kg model = 920mm L x 610mm W platform. Lift Height: 442mm – 1,610mm. • 500kg model = 920mm L x 610mm W platform. Lift Height: 350mm – 935mm. • 800kg model = 920mm L x 610mm W platform. Lift Height: 345mm – 922mm.
