气体压力调节器HP500

膜 单级 高压

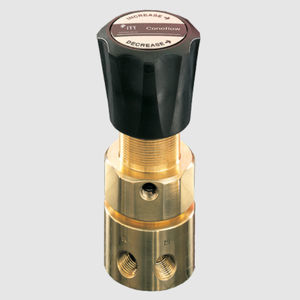

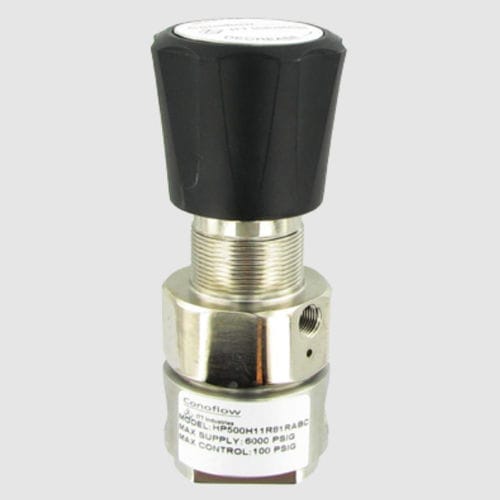

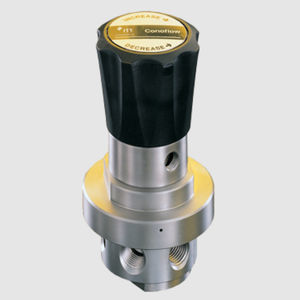

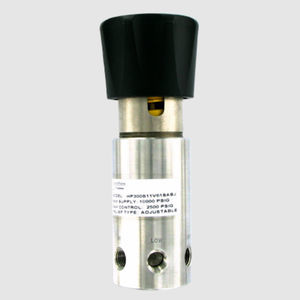

HP500高减压调节器是一个独立的、隔膜传感高纯调节器。提供广泛的建筑材料和五个控制压力范围允许的应用程序包括调节特种气体,气相色谱法,研究非饱和和腐蚀性的规定和无腐蚀性的气体和液体。材料的选择包括:铜、316不锈钢、316 l不锈钢。N.A.C.E.、蒙乃尔、hastelloy结构可按照客户要求定制。黄铜单位额定的最大供应压力5000 PSIG (34.5 MPa)。不锈钢单位是额定6000 PSIG (41.4 MPa)。可选的15 Ra微英寸润湿表面是可用的。这高纯压力调节器的目的是准确地控制压力范围4-25,4-50,5 - 100,6 - 250和10 - 500 PSIG(0 - 0.173, 0 - 0.345, 0 - 0.690, 0 - 1.73,和0 - 3.45 MPa)。HP500 1/4“不扩散核武器条约》的进口和出口连接。 Gauge ports are optional. To suit high purity applications, Vacuseal, VCR and Ultra Seal welded fittings are available. Adjustments within each range are made with a standard large handwheel. A wrench style knob with a locking device and a "T" bar handle are optional adjustments. These regulators are guaranteed by Conoflow's high standards of manufacture and years of experience as a leading producer of precision instruments.
