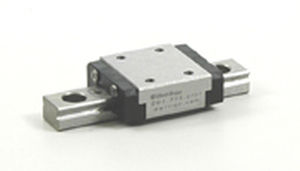

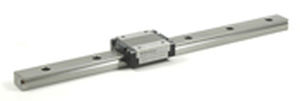

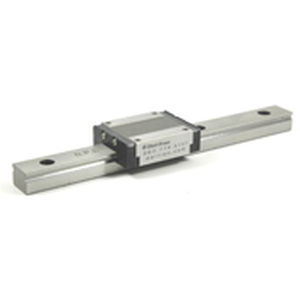

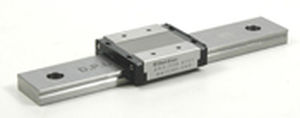

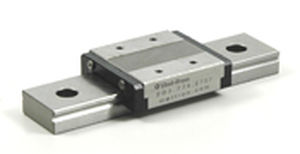

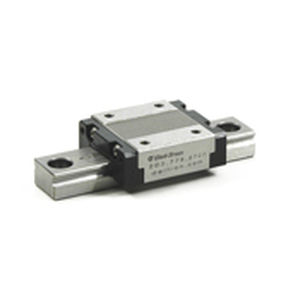

Linear guide with recirculating ball carriageBSGS5-1-55

precision steel compact

Recirculating Ball Slide Guides (RBSG) Family: BSGS5 Model: BSGS5-1-55 Price: $ 102.00 All dimensions in millimeters unless otherwise specified Total travel below is based on 1 carriage per rail Dimension of Carriage : mm (in) H : 6 (0.236) B : 12 (0.472) L2 : 17 (0.669) L1 : 15.6 (0.614) W : 2 (0.079) P1 : 8 (0.315) P2 : - S1 : M2 e1 : 1.5 (0.059) L3 : 9.8 (0.386) W2 : — S2 : — e2 : — b : 4.5 (0.177) Basic Load Ratings : kgf (lbf) Dynamic C : 44 (96) Static Co : 73 (160) Dimensions of Guide Rail : mm (in) P : 15 (.591) H1 : 4 (0.157) C : 5 (.197) B1 : 2.5 (.098) B2 : — W1 : 3.5 (.138) d x G x h : 2.4x 3.5 x 1 (.094 x .138 x .039) S3 N Type : M2.6 N : 5 (0.197) Weight : kgs (lbs) Carriage - Lb (kg) : .003 (0.007) Guide Rail - Lb/ft (kg/m) : .13 (0.086) : mm (in) Maximum Length : 340 (13.4)
