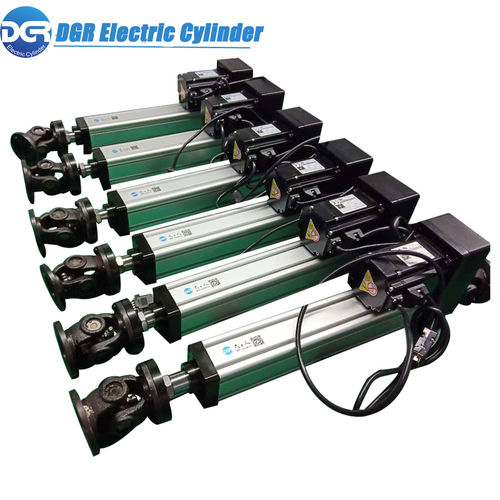

电动伺服缸DGR-EC-52

滚子丝杠直线 铝 直流

产品系列:DGREC65螺距/螺距(mm): 5/10 Max。电机功率(W): 750 Max。额定推力(N): 500 Max额定驱动扭矩(N.m): 0.6/1.1 Max。滚珠丝杠直径(mm): 16滚珠丝杠额定动态载荷(kgf): 1380/1103 Max。行程(mm): 1200轴向侧隙(mm): 0.02-0.07/0.02-0.08导联误差每300mm (mm): 0.023重复性精度(mm): 0.02伺服电机系列可选法兰尺寸(mm): 60/80步进电机系列可选法兰尺寸(mm): 57/86齿轮箱系列可选法兰尺寸(mm): 60注:1。如需了解滚珠丝杠寿命，请联系客服进行详细咨询;2.马克斯。推力和最大推力。速度不能同时达到。 Different motor and gear boxes will be used. 3.If the Max. stroke exceeds 500mm, it is recommended to add a guiding device; 4.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda; 5. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc; 6. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo; 7. The motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).
