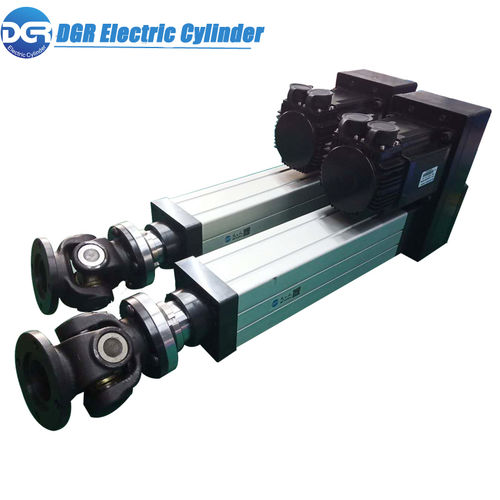

线性致动器dgr -圣- 85

电 滚珠螺杆 与伺服电动机

DGRST85 12 v步进电机10 kn电动卡车紧急警报灯光产品的线性致动器系列:DGRST85螺钉铅/音高(毫米):5/10/20/40 Max。电机功率(W): 2000 Max。额定推力(N): 10000/10000/8000/5000 Max。速度(毫米/秒):167/250667/1000额定驱动转矩(新墨西哥州):7/16/25/30 Max。滚珠螺杆直径(毫米):25/25/20/20额定动载荷的滚珠丝杆(kgf): 1724/2954/1387/653 Max。中风(毫米):1500轴反弹(毫米):0.02 - -0.04导程误差每300毫米(mm): 0.023重复性精度(毫米):0.02系列可选伺服电机法兰尺寸(毫米):90/100/110系列可选步进电机法兰尺寸(毫米):86/110可选的齿轮箱系列的法兰尺寸(毫米):90/120注意:1。如果你需要知道滚珠丝杆的生活,请联系客服详细咨询;2。马克斯。推力和马克斯。速度不能达到在同一时间。 Different motor and gear boxes will be used. 3.If the Max. stroke exceeds 500mm, it is recommended to add a guiding device; 4.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda; 5. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc; 6. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo; 7. The motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).
