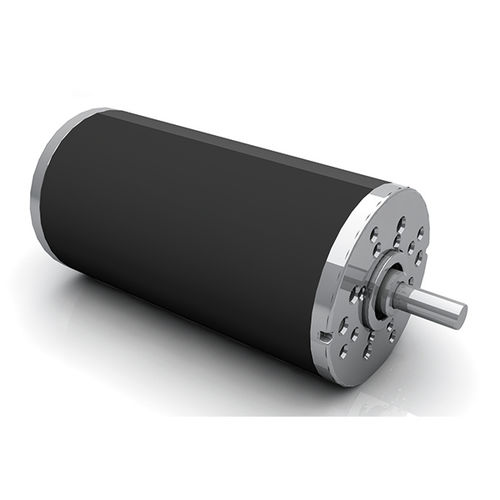

DC motorGR 63Sx55
brushed 24 V 60 V

添加到喜爱的es

Compare this product

Go to the Dunkermotoren GmbH website for more information

Characteristics

AC/DC: DC
Type: brushed
Voltage: 24 V, 60 V
Protection class: robust, IP67
Configuration: permanent magnet
Power: 117 W, 126 W (0.159 hp)
Torque: 0.32 Nm, 0.34海里(0.236 ft.lb)
Rotational speed: 3,500 rpm, 3,550 rpm, 3,750 rpm (21,991.15 rad.min-1)

Description

» Stronger permanent magnet » Operation in both directions of rotation » Ball bearing at motor output shaft is standard » Optionally with custom shaft length and diameter, shaft on both sides, special and high voltage winding, higher protection class up to IP 67 Nominal voltage - V:60 Nominal current - A:2.5 Nominal torque - Ncm:34 Nominal speed - rpm:3550 Friction torque at no load - Ncm:2 Peak stall torque Ncm:370 Maximum torque Ncm:350 No load speed - rpm:3725 Maximum output power W:360 Nominal power - W:126 Torque constant - Ncm/A:16.1 Terminal resistance - Ohm:2.6 Terminal inductance - mH:9.4 Starting current - A:23.1 No load current - A:0.2 Demagnetisation current A:22 Rotor inertia gcm^2:750 Weight kg:1.7
