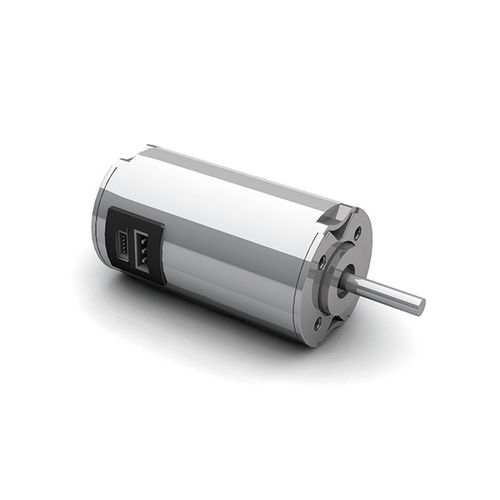

DC motorBG 32x20 KI
brushless 24 V 12 V

DC motor
DC motor
添加到收藏夹”
Compare this product
Go to the Dunkermotoren GmbH website for more information

Characteristics

AC/DC
DC
Type
brushless
Voltage
24 V, 12 V
Number of poles
8-pole
Power

18 W, 19.8 W (0.024 hp)

Torque

0.0044 Nm, 0.0045 Nm (0.0032 ft.lb)

Rotational speed

3,850 rpm, 4,320 rpm (24,190.26 rad.min-1)

Description

» Highly dynamic 3-phase BLDC motor with 8-pole neodymium magnet » Available in 2 motor lengths » Version with integrated commutation electronics » Selectable rotational direction via digital input » Can be combined with encoders and gearboxes within our modular system Nominal voltage - V:24 Nominal current - A:0.85 Nominal torque - Ncm:2.58 Nominal speed - rpm:3920 Nominal power - W:10.6
