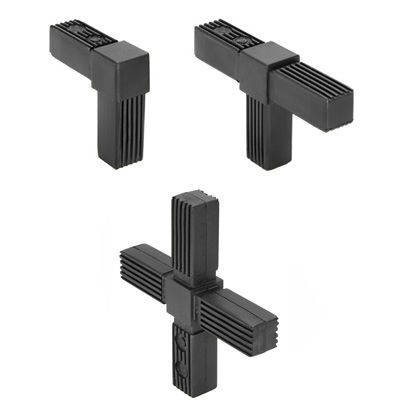

方管接头STC)

聚酰胺 钢 不锈钢

它由两部分组成，由聚酰胺(PA)聚合物制成，颜色为黑色或灰色，表面为哑光。强化镀锌钢或不锈钢(STC-SST)。颜色黑色或灰色，表面哑光标准执行- 1A-2W:一维双向连接器。—2A-2W:二维双向连接器。—2A-3W:二维三通连接器。—2A-4W:二维四通连接器。—3A-3W:三维三通连接器。—3A-4W:三维四通连接器。—3A-5W:三维五通连接器。 - 3A-6W: tridimensional six-way connector. Index for connectors with reinforcement: - R: zinc-plated steel reinforcement. - R-M10: zinc-plated steel reinforcement with threaded hole. - R-SST: stainless steel reinforcement. FEATURES AND APPLICATIONS Suitable for creating structures composed by square profiles. The assembly can be performed simply by positioning the connector, forcing it, inside the profile, with no need of screws or other fasteners. The maximum limit static load for each arm of the connectors with steel reinforcement (STC-R and STC-R-SST) is shown in Fig. 1. The maximum limit static load is the value above which, under particular conditions of use, the load applied to the element may cause breakage. As a consequence, a suitable factor must be applied to this value, according to the importance and safety level of the specific application.
