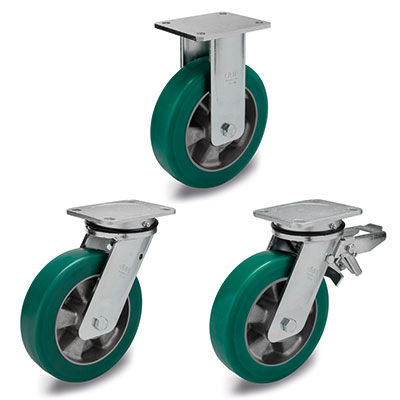

轮与实心轮胎RE.F2-WH

polyurethane-coated 对于高负载

覆盖软模具聚氨酯,硬度75海岸a .压铸铝车轮中心的身体压力。与滚珠轴承滚动行动中心。高负载和连续移动的理想解决方案。固定板支架以电解镀锌electro-welded钢。支架设计承受负荷7000 n。适合重型工业应用和严重的使用条件,如影响和高速度。把板支架以电解镀锌electro-welded钢。轴向轴承和圆锥轴承的存在确保优秀的机动性也在满载和增加支架对侧的阻力的影响。它配备润滑器和anti-loosening系统的锁定螺母。支架设计承受负荷7000 n。 Suitable for heavy industrial applications and for severe conditions of use, such as impact and high speeds. It consists of (see Fig.1): 1. fitting plate: forged steel with built-in pin, electrolytically zinc-plated; 2. fork: drawn sides electro-welded to the flange, electrolytically zinc-plated; 3. rotation system: axial ball bearing and conical roller bearing; 4. lubricator 5. anti-loosening system of the locking nut. BRAKE Dual-effect rear brake with simultaneous locking of wheel and bracket. The brake is simple and effective to use: it is actuated and released by a simple action from the top downward at the tip of two separate pedals, thus ensuring the utmost manoeuvring comfort. The braking efficacy may be adjusted with a socket head screw M8.
