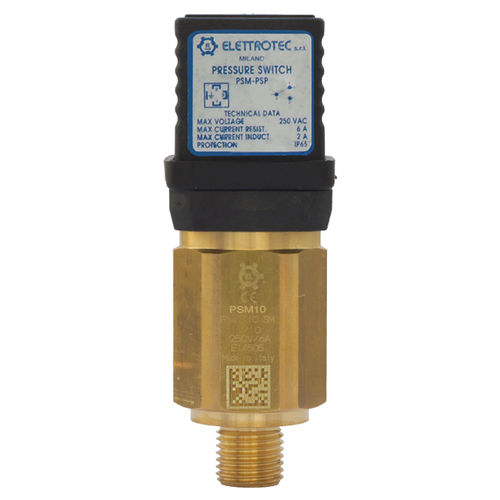

隔膜压力开关PSM，PSP系列

活塞 不锈钢 IP65

PSM / PSP - 具有SPDT触点的可调节压力开关和可调磁滞开关等级6（2）A / 250VAC电连接DIN 43650 PG09（标准） / PG11调整范围0.2 ... 2 bar;1 ... 10 bar;10 ... 50 bar;10 ... 100 bar;30 ... 150 bar;50 ... 300 bar最大静压300 bar，600 bar（根据可能的压力范围和身体材料）可调滞后10％至30％的设定点工作温度-25C ...+140c（根据diaphragm/活塞seal material) Contact (without pressure) SPDT Body material Brass - Zinc plated steel - S.S. 316 on request for all models Diaphragm/Piston seal NBR - HNBR - FKM - Silicone - EPDM - Neoprene - Stainless Steel (only for PMS2 and PMS10) Threads Taper: G1/8 BSPT - G1/4BSPT - M10x1 Parallel: M12x1.5 - G1/4 BSPP - G1/8 BSPP Protection IP65 Mechanical life 106 operations Size Body 27 AF Max height 73mm Certifications and Approvals CE, IMQ, RINA, Lloyds Register, ATEX Options Set-point adjustment rising Set-point adjustment falling Factory set-point and hysteresis adjustment Gold contacts Degreasing for oxygen applications Gas test High pressure executions Special thread connections
