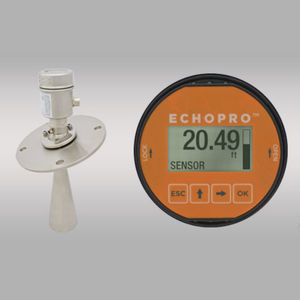

Radar level transmitterEchoPro® LR36 series

for solids 2-wire HART

The intrinsically safe 26 GHz. pulse radar transmitter provides continuous level measurement up to 49.2’ (15m) with a 4-20 mA analog and HART digital signal output, and is configured via its integral push button display module or HART communicator. The non-contact solids level sensor is intended for dry solid media including aggregates, grains, pellets, powders and building materials. Select this sensor for easy process conditions with minimal dust and installation with an adjustable mounting bracket or gimbal flange. Typical applications include bins, transfer stations and crushers. FEATURES Rugged 316L stainless steel antenna and process mount Configuration via push button display or HART communicator Gimbal flange for easy positioning with the angle of repose LCD displays level in feet or meters with percent of span bar Optional display mode indicates the echo signal return curve Fail-safe diagnostics with selectable signal fail-safe outputs Recognition, storage and rejection of false echo signal returns IP67 stainless enclosure with polycarbonate display window Frequency: 26 GHz. Accuracy: ± 10mm Dead band: 12” (30cm) Beam angle: 8º Configuration: Push button, HART 7 Memory: Non-volatile Display type: LCD, dot matrix Display units: Feet and meters Display bar: Percent of span Display graph: Echo signal curve Supply voltage: 21.6 to 26.4 VDC Max. consumption: 22.5 mA
