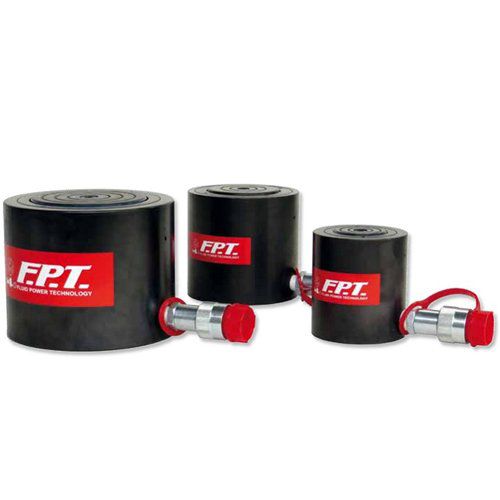

紧凑型圆柱体CRM-C系列

液压 活塞 春季回报

CRM-C系列轻巧，易于处理，紧凑的低高度液压缸，闭合高度有限，可抬起操作。•非常适合在限制区域举重和升级操作。广泛用于工业集会和建筑部门。•带有弹簧返回的液压缸，700 bar•停车环不仅可以保证最大的操作员安全，从而防止柱塞过度触诊，而且还可以吸收出色的偏心载荷。•高强度钢柱塞，NITOX QPQ处理，以增加对磨损和腐蚀的耐药性。•雨刮器可减少环和杆之间的污染。•高强度，旋转和可移动的头部。•可以根据客户要求制造定制的液压缸高压。紧凑型液压缸 - 低高度圆柱体紧凑型液压缸 - 低高度 - 高压下的单作用弹簧返回。将力从10吨推到100吨，行程为50毫米。 Extremely versatile hydraulic cylinders, for use where other cylinders will not fit, suitable for lifting and pushing operations. Operating pressure 700 bar. Guide surfaces are sized to guarantee optimal performance in absorbing the offset load and the end stroke ring increases safety for the operator by avoiding the extra stroke of the piston. Hydraulic jacks equipped with high strength gaskets for maximum durability up to 60° C, upon request it is possible to equip the cylinder with gaskets resistant to high temperatures up to 200° C. Furthermore, the presence of the wiper prevents contamination from impurities present in the environment of use.
