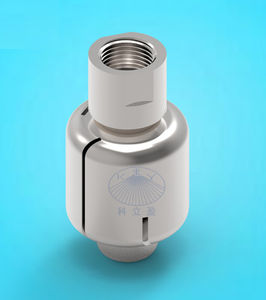

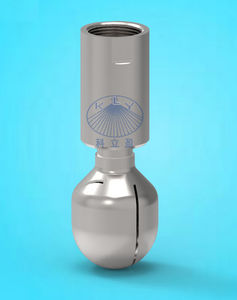

Cleaning nozzleKZ75

spray for liquids stainless steel

Model: KZ75 High impact rotating tank cleaning nozzles Material:316L ss Bearing:Slide bearing Operating pressure:3-7 bar Max. pressure:20 bar Max. tank diameter:5m Filtration:line strainer with a mesh size of 80 or 100 mesh Application:hign efficient cleaning of tanks, equipment, etc Installation:Operation in every direction is possible Advantages: Controlled rotation Pressure range up to 20 bar Driven and lubricated by the cleaning fluid Reliable slide bearing Low-wear design All materials are FDA-conform The liquid flow powers the head by an internal turbine. Either a gear reduction or a hydraulic brake is used to control the rotation. Hence the produced droplets are bigger and hit the tank wall with higher velocity. This rotary spray head keeps the speed of the head within its optimal range across a wider span of pressures, and the nozzles develops more powerful spray. Applications: Efficient cleaning and rinsing of tanks or containers, for example Chemical industry Food industry Beverage industry Pharmaceutical industry The new rotary spray head works very powerfully and efficiently based on the controlled rotation. Compared to conventional rotating spray nozzles,cleaning cycle time can be reduced considerably,This saves cleaning fluid, energy costs and time.
