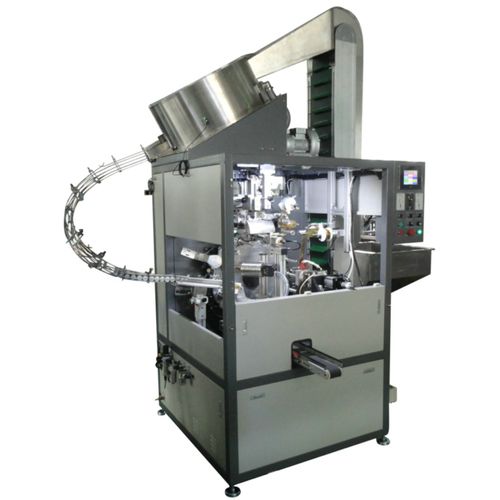

电热烫箔机H-TBD-07

1:总消耗功率:4KW;2.冲压温度范围:20-300℃;3.压缩气压:0.6MPA;4.爱游戏ayx守望先锋产品直径:外径:15-40MM L:25-70MM最大冲压速度:4200件/小时外形尺寸:250*160*230CM电源:380V/50HZ/ 3phrase (240V, 3phrase, 60HZ可选) Net weight(kg) : 1000KG 9. Goss Weight(KG):1200KG Advantages: 1. Silicon Plate foil stamping system for assuring perfect stamping quality. 2: Fully automatic loading and feeding system for mostly degree of saving labor cost and most efficiency. 3: PLC control system, with no caps no print,counting,code setting, maintainance,temperature control, automatic alarming system etc. 4: International Famous pneumatic parts included Japan SMC cylinder, valves, Germany OMERON sensors etc. 5: Japan and Taiwan famous brand DEFOILER motor,STEPPER MOTOR, vacuum pump motor etc. 6: SCHNEIDER OR PANOSONIC key eletrical components 7. Safe protection device installed. 8: Guarrantee: 1 years 9: Free techical and operation Training available. 10.Packing Size: 163*140*201CM 810KG 1 Wooden Case 265*123*125CM 250KG 1 Wooden Case This machine is designed for fully automatic foil stamping on those PVC capsules for wine bottles and aluminum screw caps foiling. This is the latest designed model for foiling on cap's top and sidewall with one machine. It is ideal for those medium and lager enterprise in the field of cosmetic bottles and aluminum caps, wine bottle caps manufacturer or printing industry.
