移印机采用闭式墨杯M6-CP

的双色 对于玩具业来说 电子行业

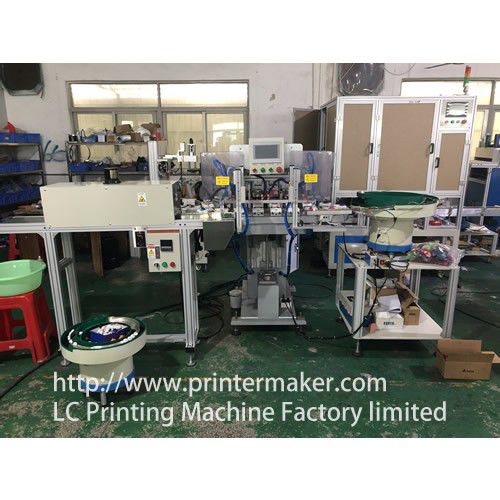

产品名称:6色安抚奶嘴护罩自动移印机型号:6m - cp 1。最大打印尺寸:75mmx100mm钢板尺寸:100mmx250mmx0.5mm墨杯直径:90mm;墨杯中心距:127mm 4:墨杯前后行程:150mm橡胶垫上下行程:75mm6.印刷精度:±0.10mm转盘工作台驱动:气缸7。工作台指南:链条8。工作站:18 Table size: 80mm*125mm; Max. Produce height:0~80mm 10. Positioning mode: pin positioning, 11. Capacity: 800-1000PCS/ hours 12. Working pressure: Mpa 0.5~0.6Mpa 13. Working cycle: about 5S 14. Machine platform structure: casting 15. Power supply: 220V; 50/60Hz; 3.5KW 16. Machine size: 3100*1600*1550MM 17. Machine net weight: 680KG, Gross weight: 890kg 18. Extra set of auto feeder: Optional 19: Flame treatment system, Optional 20: Drying tunnel: 1000meters length * 200mm width 21: Drying tunnel temperature: 0-100 degree 22: Packing size: 2600*1700*1750mm Machine Feature & Configuration: 1: Automatic loading and unloading, 2: PLC controls each function, touch screen operation, simple and convenient. 3: Touch screen features counter, 4: Alarm list screen. 5: Ink cup system with the advantages of, ink-saving, environmental effect. 6: Printing speed is adjustable to meet different printing requirements. Bench can be adjusted X, or Y ﹑ Z-axis direction. 7: Printed position is adjustable to accommodate different sizes of products. 8: Fuselage made of high-quality aluminum alloy, light, and durable. 9: Built-hydraulic buffers to reduce mechanical vibrations and reduce noise.
