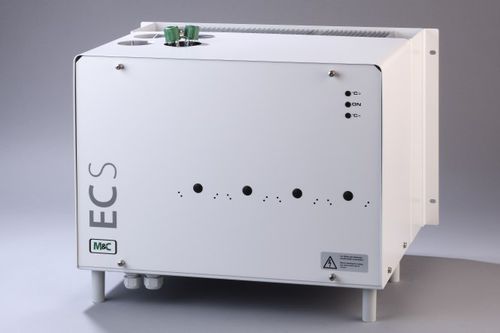

Gas coolerECS-1 series

Peltier effect

- Compressor gas cooler for up to 4 Jet-Stream heat exchangers with a gas flow rate of max. 4 x 250 Nl/h - Housing designed for up to 4 Jet-Stream heat exchangers, unit with 6 heat exchangers on request - Adjustable gas outlet dew point with a stability of < ±0.25 °C [±0.45 °F] at constant conditions - With a total cooling capacity of max. 520 kJ/h at +25 °C [+77 °F] ambient temperature - Ambient temperature up to +45 °C [+113 °F] - With status alarm contact - In a 19" rack or wall-mounting housing - Power: 230 V - Optionally: up to 4 Jet-Stream heat exchangers, automatic or manual condensate removal, different gas and condensate connections depending on heat exchanger types
