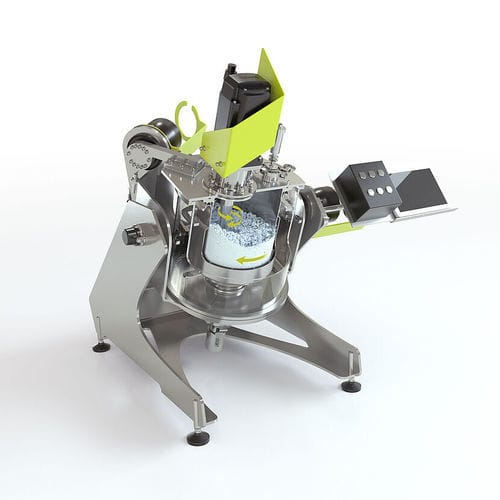

Paddle mixerCleanLine C5
batch solid/liquid stainless steel

paddle mixer
paddle mixer
paddle mixer
paddle mixer
paddle mixer
paddle mixer
paddle mixer
添加到收藏夹”
Compare this product

Characteristics

Technology
paddle
Batch/continuous
batch
Product type
solid/liquid
其他特征
stainless steel, deagglomerating
Capacity

Max.:5 l (1.32 gal)

Min.:1.6 l (0.42 gal)

Empty weight

Max.:195 kg (429.9 lb)

Min.:175 kg (385.8 lb)

Description

Groundbreaking process technology meets hygienic design One machine - many options. Don't make your lab unnecessarily full and expensive with a variety of lab machines. The C5 is the universal one-pot machine that combines an entire development lab in one. Due to the unique mixing principle, all process operations such as mixing, deagglomerating, dispersing, granulating, coating, kneading, and drying and many more are possible with a single machine. Effective cleaning Thanks to optimized accessibility, smooth surfaces and selected components, the C5 can be cleaned effectively and reproducibly. Ergonomic and quick handling The product contacted components (mixing tools, seals, scrapers, mixing vessels) can be assembled and disassembled in the twinkling of an eye. Extra flexible Simple change of mixing tools and parameter adaption allows flexible variation of different production and preparation techniques. Technical features Effective volume: 1.6 to 5.0 liters One-piece welded mixing tool, selectable in various geometries, with tool speeds from 0.6 m/s to 27 m/s Removable mixing vessel for ergonomic working and simple cleaning Touching wall scraper to avoid product adhesion Full stainless steel, high surface quality Ra < 0.8 μm Excellent scalability due to consistent geometrical ratios in the C-series
