Manual valve36V series
regulating
for gas
stainless steel
添加到收藏夹”
Compare this product
Characteristics
- Operation
- manual
- Function
- regulating
- Media
- for gas
- Body
- stainless steel
- Number of channels
- 3-way
- 其他characteristics
- high-pressure
- DN
-
Min.:0.25 mm (0.01 in)
Max.:14.3 mm (0.563 in)
- Pressure
-
2,500 bar (36,259.4 psi)
- Temperature
-
Min.:-252 °C (-422 °F)
Max.:650 °C (1,202 °F)
Description

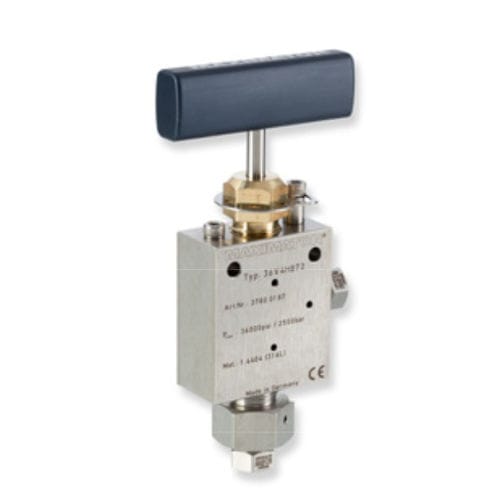

The 36V system is a stainless steel valve that can be operated using a regulating shaft. It has non-rotating stem that provides dependability, and long service lifespans of the device. It can withstand extreme working conditions and temperature. This system can be acquired in six different structures, and can be integrated with liquids and gases. Each of them consists of a collar and gland. Every characteristic of the device is recorded including batch number, material number, type designation and maximum pressure. This apparatus' seal is made from carbon and PTFE and has an orrifice size of 0.125 inch or 3.2 mm.
