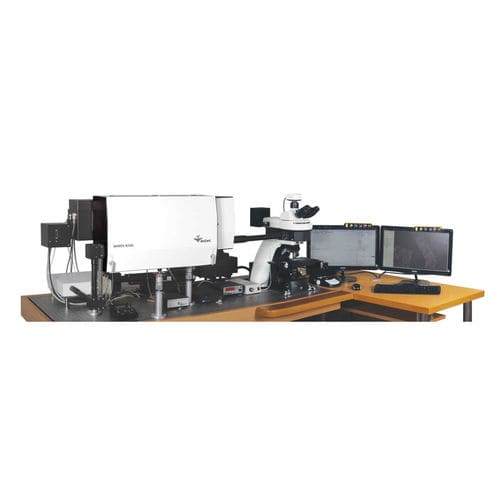

Raman microscopeRAMOS N500

laboratory 3D 光谱

OSTEC’s technology implemented in Confocal Scanning Raman Microscope RAMOS N500 provides Simultaneous Multifunctional Analysis for - Raman Measurements - Luminescence Measurements - Laser Reflection & Transmission Measurements - Spectral and Polarization measurements - Binocular view & Video camera image viewing Major features •The highest spectral and imaging resolution with specially designed spectrometer Spectral resolution of RAMOS N500 with an Echelle grating is 0.25 cm-1 •High optical throughput for enhanced sensitivity The 4th order Silicon band at 1940 cm-1 can be observed in less than one minute using a low intensity laser. •Fully automated Raman spectrometer RAMOS N500 is highly modular and automated. Up to 5 lasers can be used is a single system. The lasers can be switched from one to another by just one click. •High spatial resolution Confocal Raman microscope RAMOS N500 can achieve lateral resolution close to theoretical limitation and high axial resolution
 •Wide Raman shift measurement range •Ultrafast Raman imaging 3D scanning laser confocal Raman microscope RAMOS N500 provides the acquisition of two images within
a single scan: a Rayleigh image (using laser light reflected from a sample) and a spectral image by Raman scattering. Ultrafast imaging option allows acquiring confocal image in 3 sec (3 μs/pixel).
