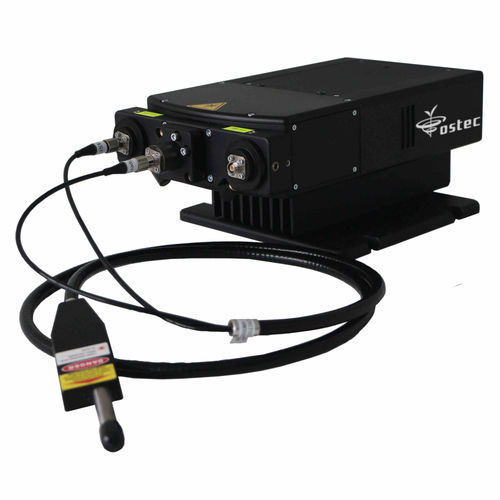

Raman spectrometerRAMOS RS120 series

fiber optic laboratory for chemical detection

RAMOS RS120 compact Raman dual-channel spectrometer is a standalone research instrument designed to perform spectral measurements with capabilities at the level of high-end systems. RAMOS RS120 spectrometer has a rigid, moving parts free design that does not require adjustments, has both high sensitivity and high spectral resolution, and can be equipped with one or two single-mode lasers 488/633 nm or 532/785 nm simultaneously. RAMOS RS120 can be equipped with Raman fiber optic probes. Research level Raman spectrometer with advanced measurement techniques One or two integrated single-mode lasers Fully automated change of lasers/gratings without additional system alignment No moving parts in the spectrometer except laser shutters Two non-switching spectral gratings (one for each laser) Compact Automatic adjustment of laser radiation power level Ability to connect fiber optic Raman probes Wide dynamic range and extremely high sensitivity of innovative sCMOS detector Edge or Notch Filters for Stokes and Anti-Stokes Spectroscopy Ultra-Low Frequency Raman (THz-Raman) from 10 cm-1 Advanced control software allows performing various types of measurements: areas, lines, sections, profiles Library of over 10,000 spectra Integration of third-party spectral databases The most affordable price in the Research Class segment of instruments One or two built-in single-mode lasers 488/633 nm or 532/785 nm Power of lasers up to 500 mW Spectral range from 70 cm-1 to 4800 cm-1 Standard 100 cm-1 Edge filters , 50 cm-1 optional Spectral resolution up to 4 cm-1 (for 532 nm laser) Low frequency cut-off up to 10 cm-1 4096-pixel wide sCMOS detector with 7 µm pixels
