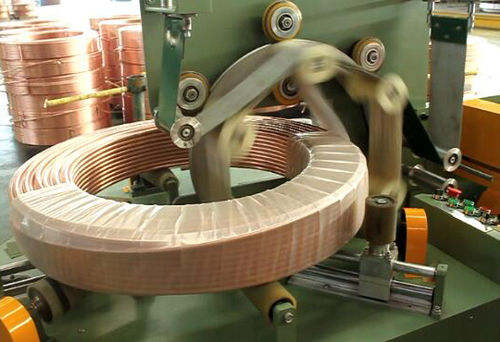

旋转环包装机

自动 对管

铜管盘管包装机是一种卧式盘管包装机，适用于纸制、编织、聚乙烯、弹力膜等铜管包装。非熟练操作人员操作容易维护方便，结构坚固。3.变频调速。4.包装好的线圈由输送机送至堆垛处。5.出现故障时，指示灯自动报警。6. Supportive rollers lifting the coil from conveyor for wrapping. 7. Adjust the overlap rate of wrapping tape according to the requirements. 8. Wrapping tape tension can be adjusted. 9. Ring speed adjustable by convertor. 10. Roller speed adjustable by convertor. 11. Packing tape tension can be adjusted. 12. Automatic paper/HDPE/woven… material cutting 13. Difference packing material can be choosing. 14. Soft stop and start. 15. Ring original position reset. 16. Overlapping adjustable from 10%-90% 17. Rotate roll and centering roll covered with PU for products protection. 18. Working table height should be adjusted 19. Control panel can be touched at operator's side i.e. cross the working table over the head Technical parameter of packaging line: Object weight: 25-300kg Package width: 50-300mm Package OD: 600-1400mm Package ID:400-1000mm OD-ID:<600mm Roller Speed:2-4m/min Wrapping speed:20-50sec/pcs Rotating speed: 20-100r/min Overlap scope: 20%-90% Power voltage: 380v/60Hz Air supply:5-8kgf/m2 Packing material: woven belt/Paper/ ID:55mm OD:100-500mm Width:75mm Basic configuration： PLC- SIEMENS HMI- SIEMENS, Converter- SIEMENS, Sensor—Autonics, Encoder-DELTA, pneumatic element-AIRTEC，Main motors-Dongli/Jiemai，switch、button、Contactor- Schneider.
