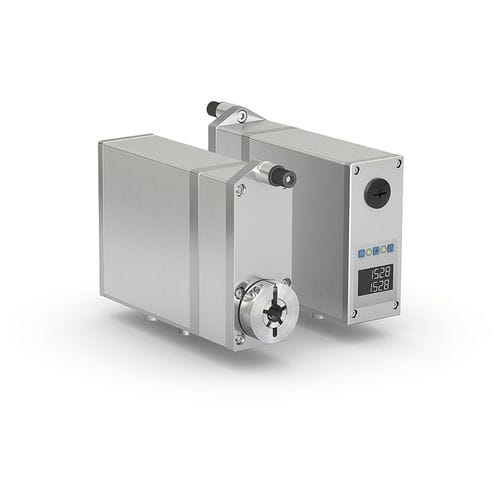

扶轮致动器AG24

电 不锈钢 工业

AG24现场总线/IE执行器AG24现场总线/IE工业以太网最大公称扭矩为14纳米，新的AG24是一个真正的动力包，用于格式调整轮廓AG24现场总线/IE:最大不锈钢空心轴。ø 20mm， ø 14mm处羽键槽“手动”移动，无需控制单元，通过操作键实现无刷160w，24 V直流电机使用寿命长综合绝对位置编码器的输出轴集成定位控制器集成弹簧驱动制动(选项)2行液晶为目标和位置值和操作键集成Industrial-Ethernet-Fieldbus M12组件安装技术手册与电机没有紧急调整brake Mechanical data Feature - Technical data - Additional information Shaft - stainless Steel - Housing - aluminum anodized - Clamping ring - stainles Steel - Operating mode - S3 intermittent duty: 25 % DC. 10 min. - EN 60034-1 Brake momentum - brake-induced stop momentum corresponds at least to the nominal torques of the individuel transmissions. - at ambient température = 20 5C Weight - "3.2 kg - Electrical data - - Feature - Technical data - Additional information Operating voltage - 24 V DC ±20 % - reverse polarity protected. output stage + control unit Power input - "160 W - Parameter st orage - 106 cydes - also applies to calibration operations Rated current - 6 A ±5 % - at rated torque/speed {output stage) No-load current - 350 mA ±20 % - (with transmission) Display/display range - 6-digit LCD 14-segment. -8 mm height - dedmal points. 2 lines. spedal charaders {LED bacxlit redAvhite)
