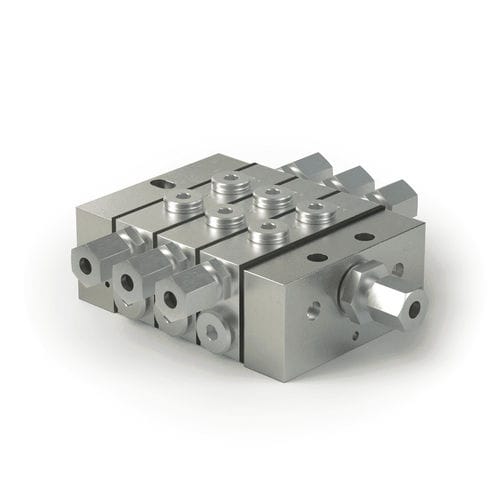

Progressive lubrication system lubricant metering deviceVP

continuous-motion intermittent-motion modular

For use in progressive lubrication systems The VP type metering device is a sectional metering device. Its metering sections cover a metering volume per outlet and cycle of 0,1 cm³ (T-section = 2 outlets) to 1,2 cm³ (S-section = 1 outlet). All sections (inlet, intermediate, end) are tightened via tie rods. The delivery ducts are sealed by porting plates in-between the segments. A minimum of three intermediate sections is necessary. Features and benefits Volumetric flow of up to o 1,0 l/min (61 in3/min) Universal use in continuous or intermittent operation Metering sections with variable metering amount Internal and external consolidation of outlets Visual or electrical monitoring optional Ideal as main metering device All outlets with build-in non-return valves Applications Preferred master metering device Metal forming machines Vehicles, trucks Construction and mining Packaging machines General industry Farm machinery
