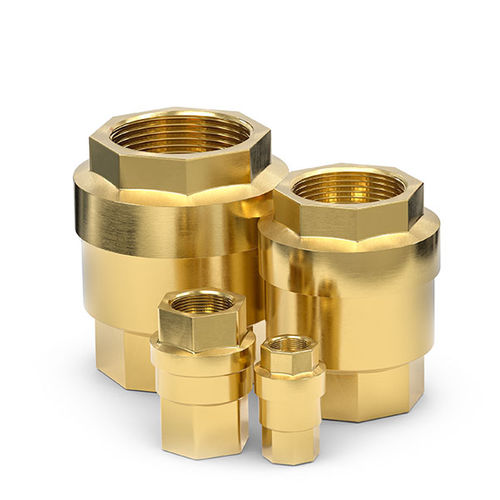

球检查阀TVR61-S1

女性 液压 黄铜

检查阀TVR61 -S1，黄铜，20-40 bar-产品家族TVR61 tvr61 tvr61 tvr61校验阀设计，并且非常适合在带有液体介质和压缩空气的装置中的液压和气动应用。它们已在带压力容器或潜水泵的装置中被证明多年了。得益于最小的开裂压力，阀门在操作中特别安静。它们的特征是流量高，因此可以节省大量时间。止回阀可以安装在任何位置。仅必须考虑流动方向。标准版本的两端都有女性线程。可以使用从G1/4“到G2”的尺寸。其他连接尺寸和版本可应要求提供。特征• - 黄铜• - 全流量，高流量• - 最小压力损失• - 紧凑尺寸• - 平均泄漏紧密度• - 低噪声开口和关闭标称孔（DN） - ACC。 to design Max. allowable operating pressure PS - 20 up to 40 bar, acc. to design Cracking pressure PC - 0.025 bar Temperature range - -20 °C up to max. +100 °C, acc. to application Housing material - Brass Spring material - Stainless steel Sealing material DW - FKM Sealing concept - Cone seal Media inlet B1 - G1/4", G3/8", G1/2", G3/4", G1", G1 1/4", G1 1/2", G2" Media outlet B2 - G1/4", G3/8", G1/2", G3/4", G1", G1 1/4", G1 1/2", G2" Flow Direction - B1 -> B2 Application Hydraulic (oils of fluid group 2 within the meaning of the Pressure Equipment Directive 2014/68/EU) and pneumatic applications in plant engineerings, also suitable in applications with submersible pumps, pressure vessels, air conditioning systems, heating systems etc.
