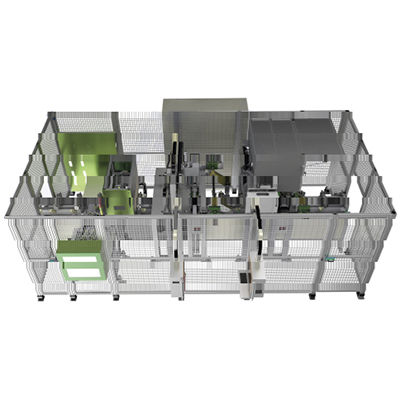

圆度测量机

圆柱度 轴承 连杆

曲轴测量机实现了自动测量下列事项:不圆度和圆柱度的主轴承和连杆颈;4 j宽度、连杆颈的宽度,将轴直径、不圆度和圆柱度;射频外圆直径和不圆度;合适的外循环直径;将轴、b轴和脉冲板键槽宽度。它还具有以下功能:印迹按照成绩,序列号印记,SPC分析上述测量数据,不同类型之间的快速变化,数据存储器和储蓄。技术参数测量原理:比较测量。位移传感器是用来测量测量的零件和校准之间的差异部分,然后计算测量零件的相对大小。整个控制系统采用Profinet总线通信方式与主机为OPC通信。集成是强大和交流是安全可靠的。 Measurement range: Manual adjustments for various sizes measurements. Centre-to-centre distance: 120mm-150mm, large bore inner diameter: 40mm-60mm, small bore inner diameter: 15mm - 30mm, big end thickness: 18mm-30mm. Measurement takt time: ≤10 seconds, under normal condition and operation Measurement position technology level: sensor resolution: 0.0001mm, measurement accuracy: ±0.001mm, GRR: ≤10%. Technical characteristics •High measurement precision •High measurement accuracy •High measuring efficiency: 45 sec / piece •Greatly reduce labor costs
